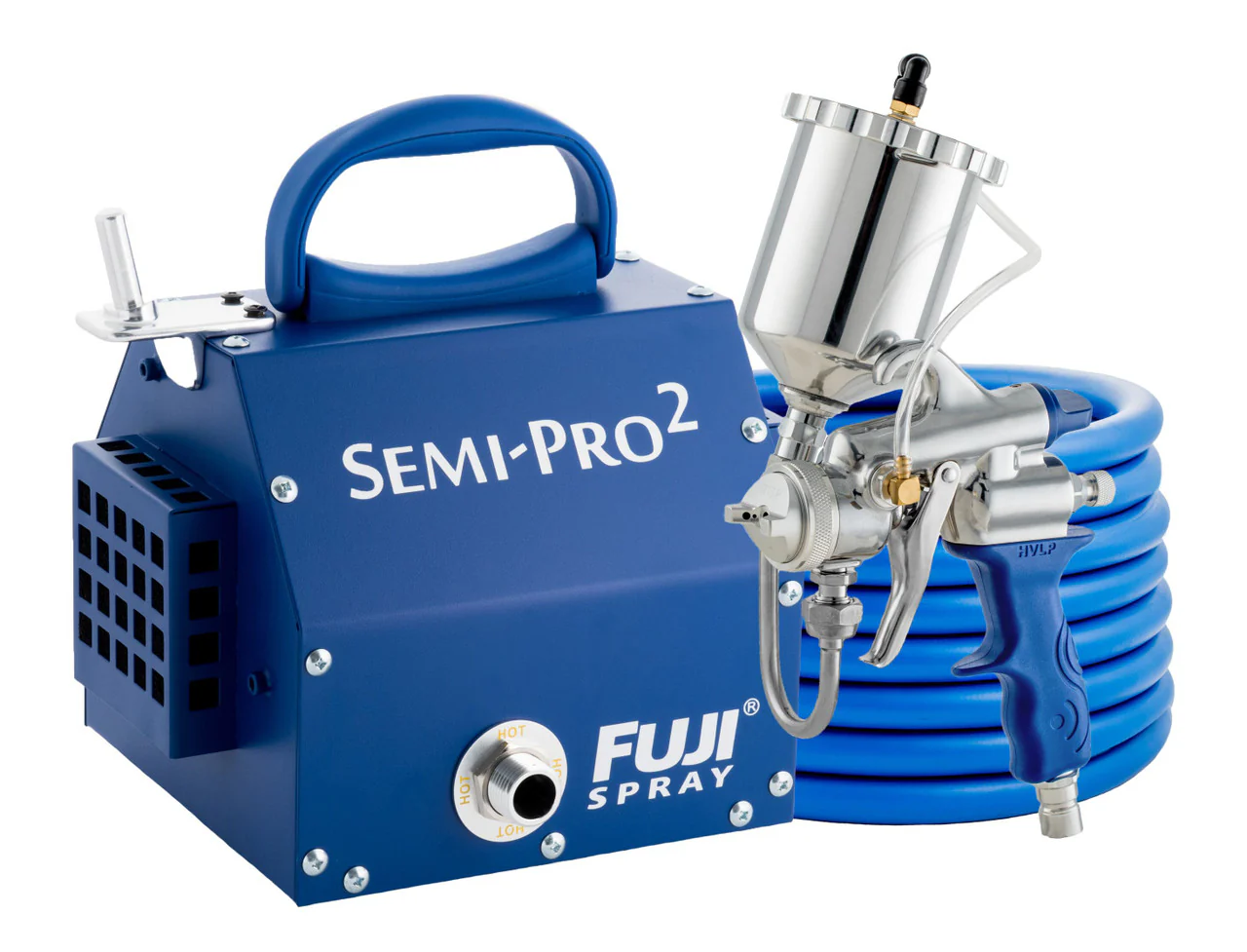

2203G Semi-Pro 2 HVLP Spray System with 7002G Gravity-Feed Spray Gun

The 2203G Semi-Pro 2 is a powerful HVLP spray system designed for serious DIY users and semi-professional finishing applications. Its 1,400W turbine develops approximately 5 PSI, providing the power required to spray a wide range of coatings while maintaining the control expected from an HVLP system.

The turbine is housed in a durable metal case supported by four rubber feet for stability. A modular power cord simplifies storage and replacement, while the built-in gun stand provides a convenient place to rest the spray gun between coats.

A full-length 25 ft. Hi-Flex hose gives you room to move around larger projects. The integrated air-control valve helps reduce overspray, and the brass quick-connect coupler allows fast connection between the gun and hose.

The included 7002G M-Model Gravity Spray Gun features a non-bleed design that minimizes unnecessary airflow when the trigger is released, helping reduce airborne shop dust and overspray. Dedicated fan-pattern control lets you adjust the spray from a small circular pattern to a wider vertical or horizontal fan. A nylon-coated Stay Cool handle remains comfortable during extended spraying, while the 400cc gravity cup and installed 1.3mm air cap set make the gun ready for a variety of finishing tasks.

Features

• HVLP spray system designed for serious DIY and semi-professional applications
• Powerful 1,400W turbine develops approximately 5 PSI
• Suitable for spraying a wide range of coatings
• Durable metal turbine housing
• Four rubber feet provide stable placement during use
• Modular power cord supports convenient storage and serviceability
• Built-in spray gun stand
• 25 ft. Hi-Flex hose provides generous working range
• Hose-mounted air-control valve helps minimize overspray
• Brass quick-connect coupler allows fast gun-to-hose connection
• Non-bleed spray gun reduces unnecessary airflow when the trigger is released
• Dedicated fan-pattern control adjusts from circular to vertical or horizontal spray patterns
• Nylon-coated Stay Cool handle remains comfortable during extended use
• 400cc gravity-feed cup
• 1.3mm air cap set installed
• Spray gun is designed for comfortable handling and straightforward cleaning
• Backed by a 2-year parts and labour warranty

Specifications

• Model: 2203G Semi-Pro 2
• Spray gun model: 7002G M-Model
• Spray system type: HVLP
• Motor power: 1,400W
• Operating pressure: Approximately 5 PSI
• Hose length: 25 ft.
• Hose type: Hi-Flex
• Spray gun type: Non-bleed gravity feed
• Cup capacity: 400cc
• Installed air cap set: 1.3mm
• Turbine dimensions: 11 in. x 8.6 in. x 8.1 in. (28 cm x 22 cm x 20.5 cm)
• Turbine system weight: 12.35 lb. (5.6 kg)
• Packaged dimensions: 16.5 in. x 14 in. x 15.5 in. (42 cm x 35.5 cm x 38.5 cm)
• Packaged weight: 25.2 lb. (11.43 kg)
• Warranty: 2 years on parts and labour

Comes With

• 2203G Semi-Pro 2 turbine
• 7002G M-Model gravity-feed spray gun
• 400cc gravity cup
• 1.3mm air cap set
• 25 ft. Hi-Flex hose
• Air-control valve
• Brass quick-connect coupler
• Modular power cord
• Integrated gun stand

FAQ

Who is the Semi-Pro 2 designed for?

It is designed for serious DIY users and semi-professionals who need a capable HVLP system for controlled finishing work.

How much power does the turbine provide?

The turbine uses a 1,400W motor and develops approximately 5 PSI.

What size spray cup is included?

The 7002G gravity-feed spray gun includes a 400cc cup.

What air cap set is installed?

A 1.3mm air cap set is installed.

Can the spray pattern be adjusted?

Yes. The dedicated fan-pattern control lets you adjust the spray from a small circular pattern to larger vertical or horizontal fan patterns.

What is the advantage of the non-bleed spray gun?

The gun stops airflow when the trigger is released, helping reduce airborne shop dust and unnecessary overspray.

How long is the included hose?

The system includes a 25 ft. Hi-Flex hose.

Does the hose include airflow adjustment?

Yes. The hose includes an air-control valve that can be used to reduce airflow and help minimize overspray.

What warranty is included?

The system is backed by a 2-year warranty on parts and labour.
