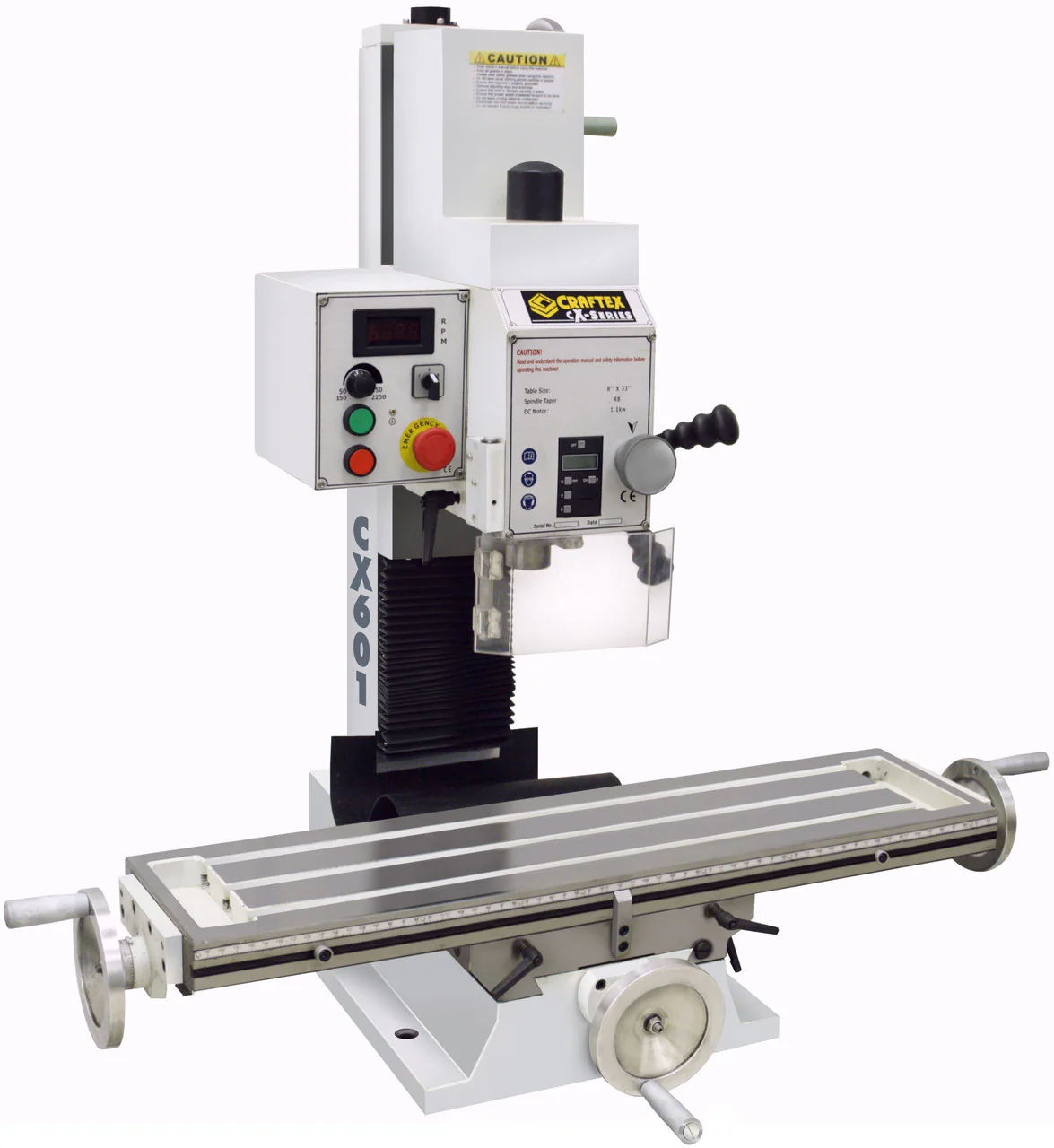

The CX601 Mill/Drill brings many of the capabilities of a larger milling machine into a practical workshop format. Its 33" x 8.2" table provides ample space for a wide range of projects, while three T-slots make it easy to secure workpieces for controlled and accurate machining.

Spindle speed is adjustable from 50 to 2,250 RPM using high and low ranges and a variable-speed control knob. A digital spindle RPM readout clearly displays the selected speed, helping the operator match spindle performance to the material, cutting tool, and application.

The R8 spindle taper supports commonly available R8 collets and tooling. For angled drilling, bevel work, and horizontal slotting applications, the milling head tilts up to 45 degrees to either side. Precision manual down-feed and fine down-feed controls provide flexibility for both drilling and milling operations.

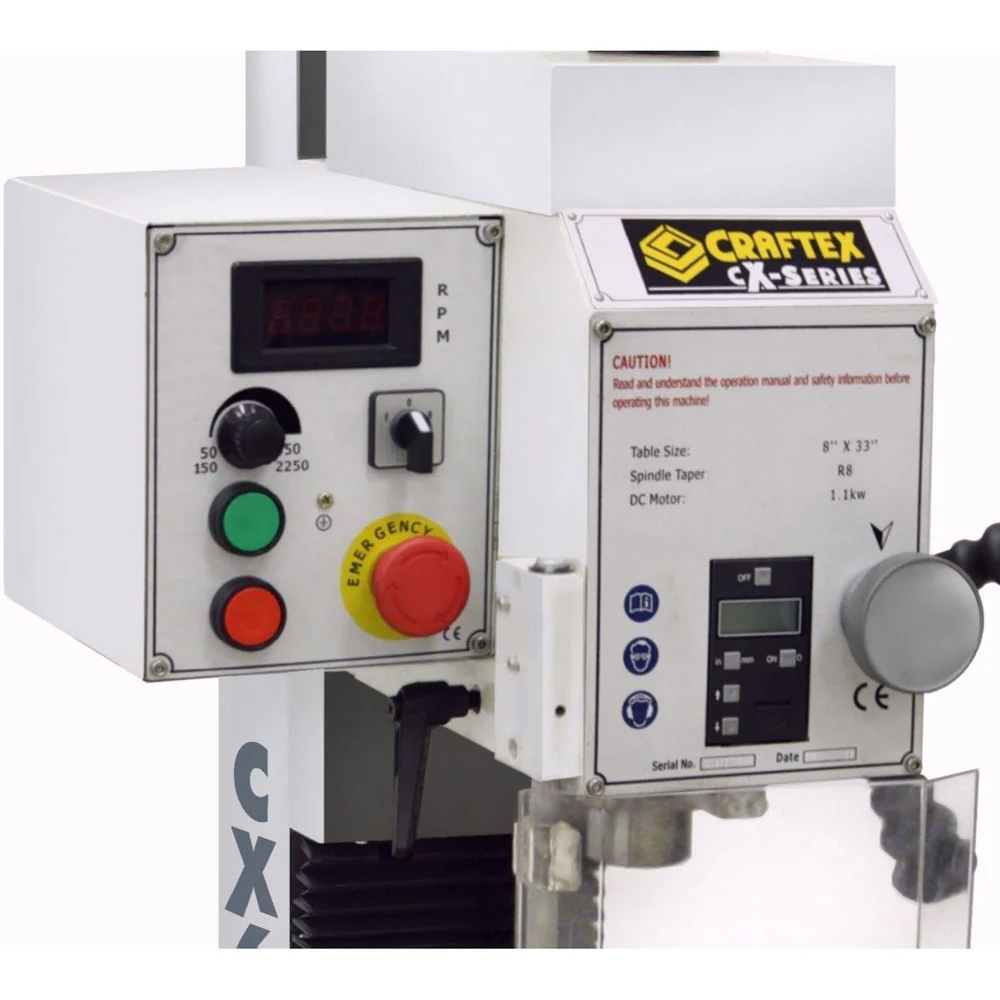

The control panel includes on/off controls, variable-speed adjustment, a spindle RPM display, forward and reverse operation, and an emergency stop button. An interlocked chip guard helps protect the operator by preventing the machine from starting unless the guard is correctly positioned around the spindle.

Features

• 1.5 HP, 110V single-phase motor

• Variable spindle speed from 50 to 2,250 RPM

• High and low spindle speed ranges

• Digital spindle RPM readout

• Digital spindle height gauge

• R8 spindle taper for use with compatible R8 tooling

• Milling head tilts 45 degrees left and 45 degrees right

• Gear head delivers strong torque

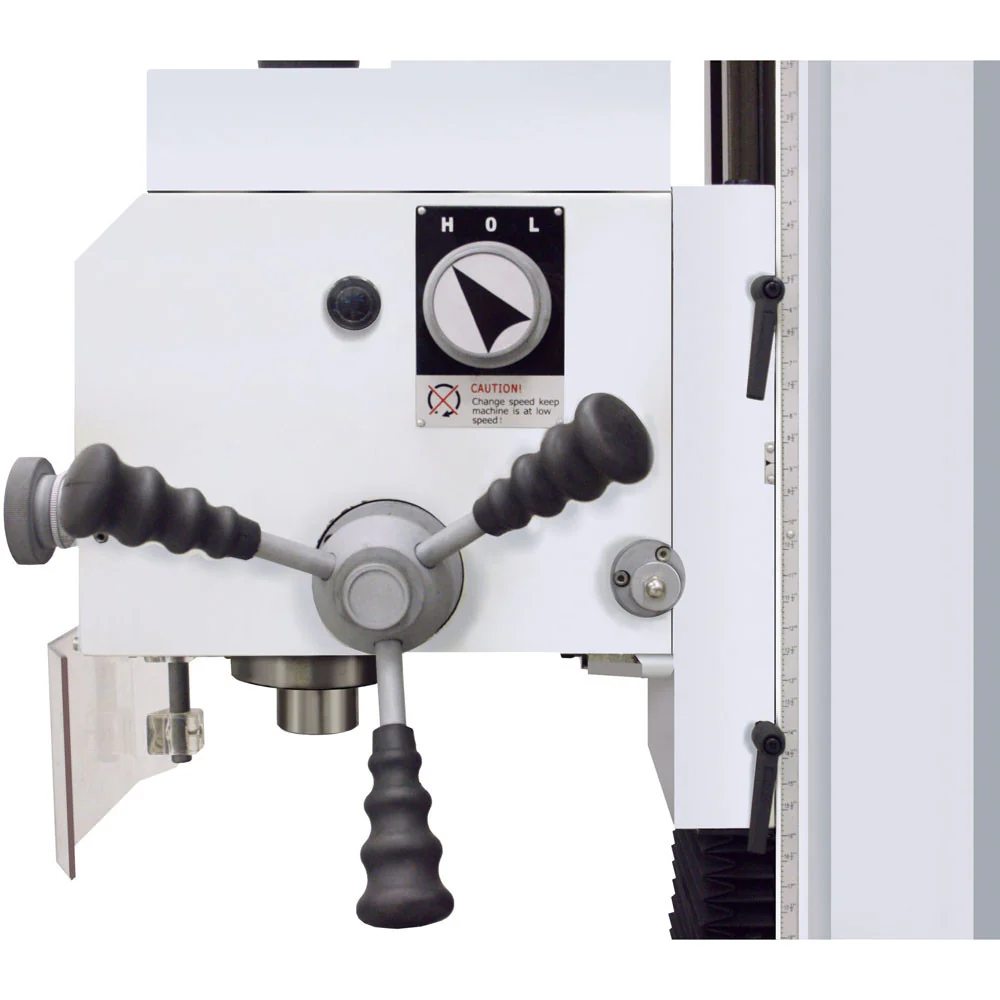

• Precision manual and fine down-feed controls

• Large 33" x 8.2" worktable

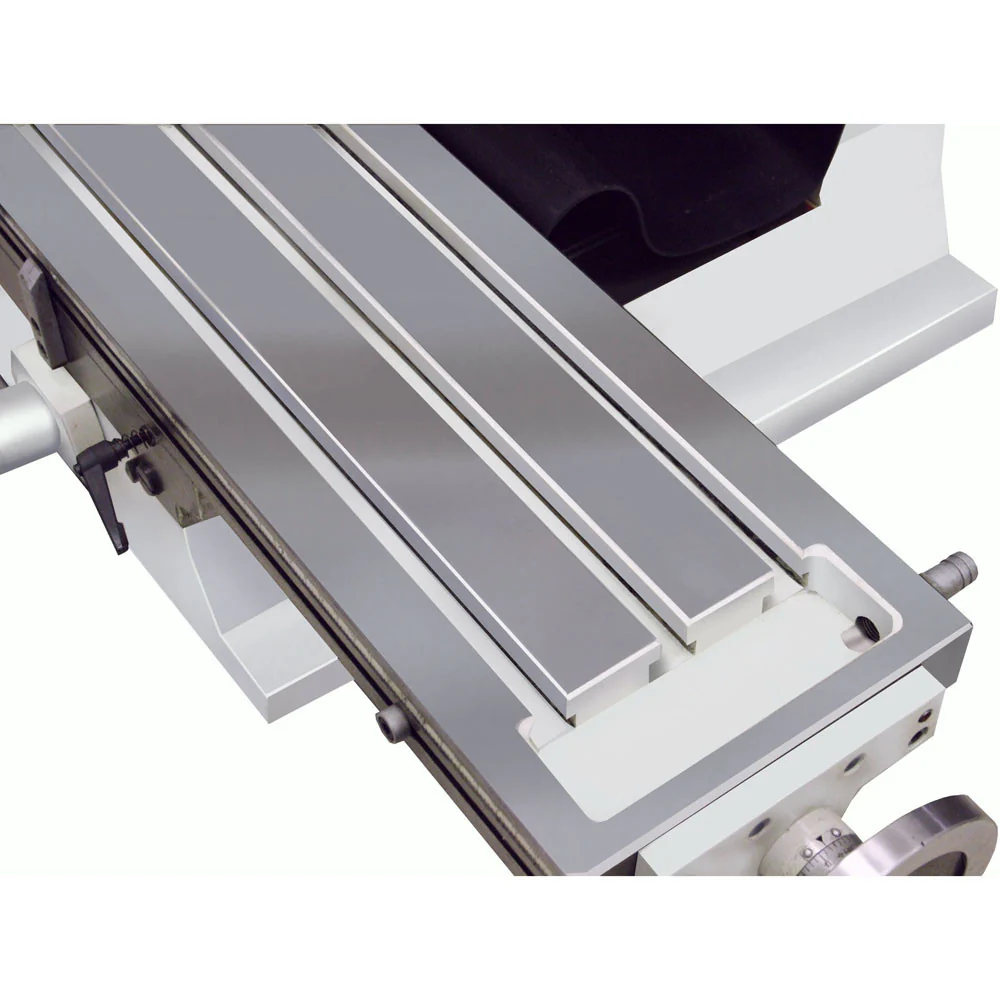

• Three T-slots for securing workpieces and fixtures

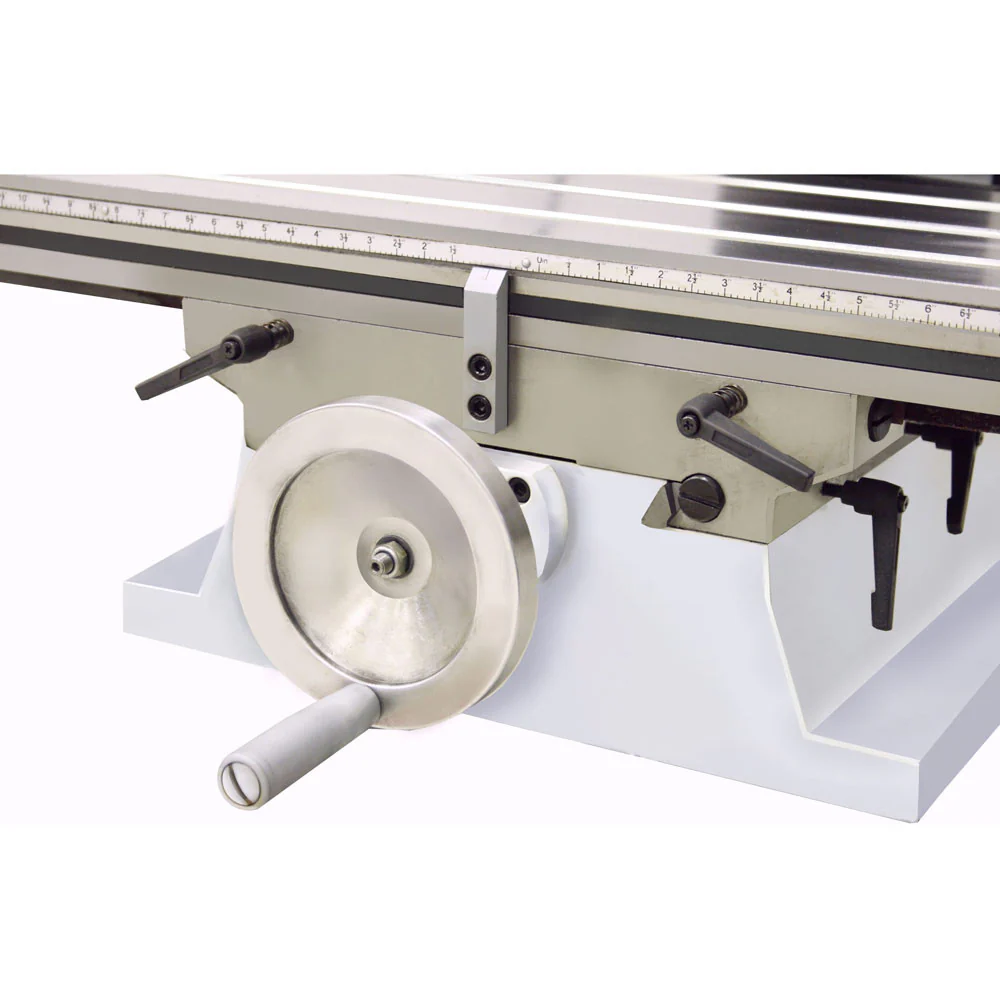

• Positive locks for the table, head, and quill

• Easy-to-read scales

• Forward and reverse spindle operation

• Emergency stop button

• Interlocked chip guard prevents startup when the guard is out of position

• Four base mounting holes for secure installation

• Compatible with the optional CX601ST stand, sold separately

Specifications

• Model: CX601

• Motor: 1.5 HP

• Voltage: 110V

• Phase: Single phase

• Drilling capacity: 32 mm (1.25")

• End mill capacity: 20 mm (0.78")

• Face mill capacity: 76 mm (3")

• Spindle taper: R8

• Spindle stroke: 70 mm (2.7")

• Head tilt: 45 degrees right and 45 degrees left

• Spindle speeds: Variable

• Spindle speed range: 50 to 2,250 RPM

• Table working surface: 840 x 210 mm (33" x 8.2")

• Table longitudinal travel: 425 mm (16.7")

• Table cross travel: 220 mm (8.6")

• Number of T-slots: 3

• T-slot size: 10 mm (0.39")

• Overall dimensions: 850 x 890 x 1,120 mm (33.4" x 35" x 44")

• Approximate net weight: 240 kg (529 lb)

• Approximate shipping weight: 280 kg (617 lb)

• Warranty: 3 years

Comes With

• Drill chuck

• Digital spindle height gauge

• Drawbar

• R8 arbor

• Oil bottle

• Six Allen keys

• Slotted screwdriver

• Phillips screwdriver

• User manual

• Tool box

FAQ

What types of work can the CX601 perform?

The CX601 is designed for drilling and milling applications, including operations such as end milling, face milling, angled drilling, and horizontal slotting.

What is the spindle speed range?

The spindle speed is continuously variable from 50 to 2,250 RPM within high and low speed ranges.

Does the machine display the spindle speed?

Yes. The control panel includes a digital readout that displays the spindle speed in RPM.

What type of spindle taper does the CX601 use?

The CX601 uses an R8 spindle taper for compatibility with suitable R8 collets and tooling.

Can the milling head be tilted?

Yes. The head can be tilted up to 45 degrees to the left or right for angled machining operations.

What is the maximum drilling capacity?

The maximum stated drilling capacity is 32 mm (1.25").

Does the CX601 include a stand?

No. The CX601ST stand is available separately. The machine base includes four mounting holes for installation on the compatible stand.

What safety features are included?

The CX601 includes an emergency stop button and an interlocked chip guard. The machine will not start unless the chip guard is correctly positioned.

What warranty is included?

The CX601 is backed by a 3-year warranty.
