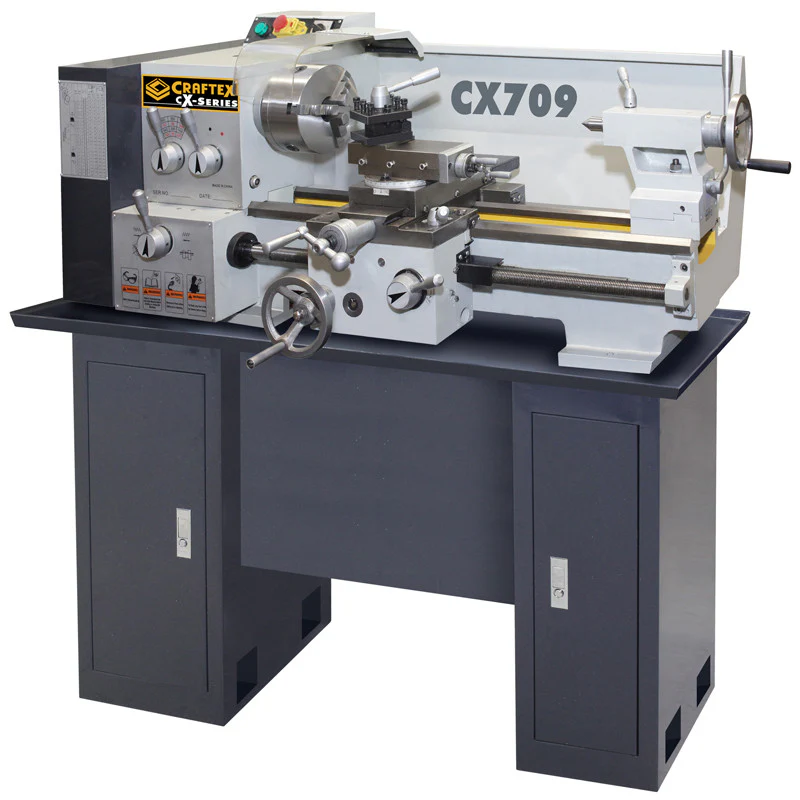

Built for accuracy, durability, and dependable workshop performance, the CX709 offers a 13" swing over the bed and capacity for workpieces up to 24" between centres. Its belt-and-gear drive system provides 12 spindle speeds from 65 to 1,650 RPM, allowing the operator to select an appropriate speed for turning, facing, boring, and threading operations.

The four-way tool post supports efficient tool changes, while the available longitudinal and cross-feed ranges provide flexibility for controlled machining. Supplied with both 3-jaw and 4-jaw chucks, a faceplate, steady rest, follow rest, splash guard, and stand, the CX709 arrives equipped for a variety of metalworking projects.

Features

• 1.5 HP, 110V motor

• 13" maximum swing over the bed

• 24" maximum workpiece length between centres

• 1.5" spindle bore

• 12 spindle speed settings

• Spindle speed range from 65 to 1,650 RPM

• Belt-and-gear speed selection

• Four-way tool post for efficient tool positioning

• Cuts 17 metric thread sizes

• Cuts 24 imperial thread sizes

• Longitudinal and cross-feed capability

• MT5 spindle taper

• MT3 tailstock quill taper

• Heavy-duty construction

• Powder-coated two-tone CX-Series finish

• Cabinet stand included

• Full splash guard included

• 3-year warranty

Specifications

• Model: CX709

• Motor: 1.5 HP, 110V, 11A

• Maximum Swing Over Bed: 13"

• Maximum Workpiece Length Between Centres: 24"

• Maximum Swing Over Carriage: 8.5"

• Bed Width: 6.2"

• Spindle Bore: 1.5"

• Spindle Taper: MT5

• Number of Spindle Speeds: 12

• Spindle Speed Range: 65 to 1,650 RPM

• Maximum Lateral Tool Post Travel: 6.2"

• Maximum Longitudinal Tool Post Travel: 4"

• Number of Metric Threads: 17

• Metric Thread Range: 0.5 to 4 mm

• Number of Imperial Threads: 24

• Imperial Thread Range: 8 to 40 TPI

• Longitudinal Feed Range: 0.1 to 1.396 mm per revolution

• Cross-Feed Range: 0.025 to 0.34 mm per revolution

• Tailstock Quill Diameter: 1.5"

• Tailstock Quill Travel: 2.7"

• Tailstock Quill Taper: MT3

• Net Weight: 240 kg

• Warranty: 3 years

Comes With

• 3-jaw chuck

• 4-jaw chuck

• Faceplate

• Steady rest

• Follow rest

• Cabinet stand

• Splash guard

FAQ

What is the maximum swing over the bed?
The CX709 has a maximum swing over the bed of 13".

What is the distance between centres?
The lathe accommodates workpieces up to 24" long between centres.

What spindle speeds are available?
The CX709 provides 12 spindle speeds ranging from 65 to 1,650 RPM.

What is the spindle bore diameter?
The spindle bore measures 1.5".

Can the CX709 cut metric and imperial threads?
Yes. It can cut 17 metric thread sizes from 0.5 to 4 mm and 24 imperial thread sizes from 8 to 40 TPI.

What spindle and tailstock tapers does it use?
The spindle uses an MT5 taper, while the tailstock quill uses an MT3 taper.

Are both 3-jaw and 4-jaw chucks included?
Yes. The lathe comes with both a 3-jaw chuck and a 4-jaw chuck.

Does the CX709 include workpiece supports?
Yes. A steady rest and follow rest are included for supporting longer workpieces.

Is a stand included?
Yes. The CX709 comes with a cabinet stand.

What warranty is included?
The CX709 is backed by a 3-year warranty.
