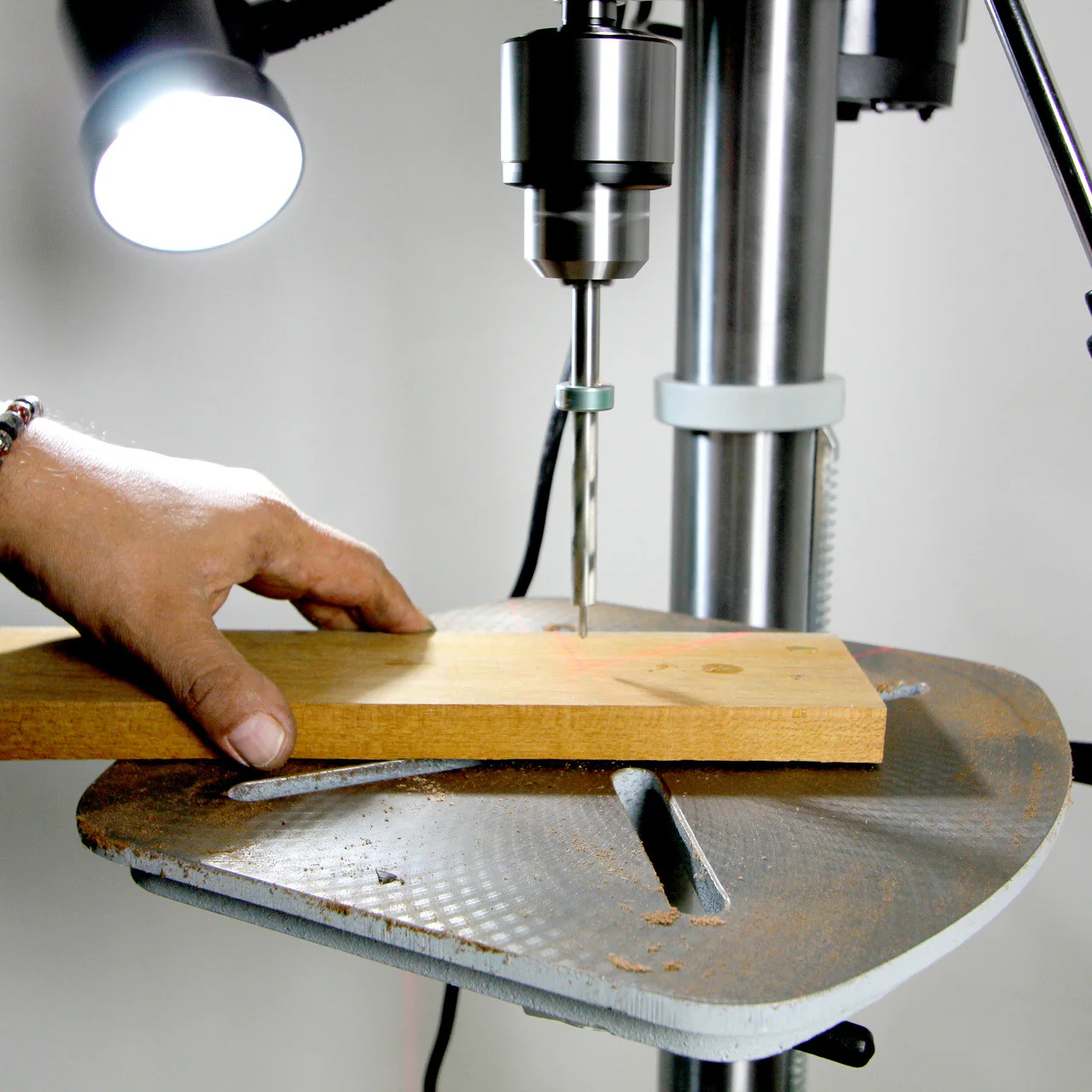

Built for woodworking and metalworking shops, this floor-model drill press provides the power, capacity, and adjustability needed for a wide range of drilling operations. Its variable speed control allows the spindle speed to be adjusted from 280 to 3,300 RPM, helping users match the operating speed to the material, drill bit, and hole size.

A digital display makes it easy to monitor spindle speed, while the rack-and-pinion table mechanism allows convenient height adjustments. The table rotates 360 degrees and tilts 45 degrees to the left or right for angled drilling applications. Heavy-duty cast iron components and a steel column provide a stable platform that helps reduce vibration and support accurate results.

Features

• Variable spindle speed from 280 to 3,300 RPM

• Digital speed display for convenient RPM monitoring

• 1 HP motor for woodworking and metalworking applications

• Drilling capacity up to 3/4" in mild steel

• 4" spindle travel for drilling deeper holes

• Precision-ground spindle for smooth, accurate operation

• Rack-and-pinion table height adjustment

• Table rotates 360 degrees around the column

• Table tilts 45 degrees left and right for angled drilling

• Built-in LED work light improves visibility at the drilling area

• Precision-ground cast iron table

• Heavy-duty cast iron base and head

• Steel column

• Safety switch with removable key

Specifications

• Motor: 1 HP, 110V, single-phase, 60 Hz

• Swing: 15"

• Spindle Taper: MT2

• Spindle Travel: 4"

• Maximum Distance from Spindle to Column: 7-1/2"

• Maximum Distance from Spindle to Table: 31-1/2"

• Spindle Speeds: Variable

• Spindle Speed Range: 280 to 3,300 RPM

• Maximum Head Swivel: 360 degrees

• Table Tilt: 45 degrees left and right

• Table Rotation: 360 degrees

• Drilling Capacity in Mild Steel: 3/4"

• Construction: Precision-ground cast iron table, steel column, cast iron head, and cast iron base

• Overall Dimensions: 12" x 17" x 60"

• Weight: 156 lbs. (70 kg)

• Warranty: 3 years

Comes With

• Drill chuck

• JT33 chuck key

• Drill press table

• LED work light

FAQ

Can this drill press be used for both wood and metal?
Yes. The variable speed range allows the drill press to be adjusted for a variety of woodworking and metalworking applications.

What is the spindle speed range?
The spindle speed can be adjusted from 280 to 3,300 RPM.

Does the drill press display the operating speed?
Yes. A digital speed display allows the operator to monitor the spindle RPM.

What is the maximum drilling capacity in mild steel?
The drill press has a stated drilling capacity of up to 3/4" in mild steel.

How far does the spindle travel?
The spindle has 4" of travel, providing capacity for deeper drilling operations.

Can the table be adjusted for angled drilling?
Yes. The table tilts up to 45 degrees to the left or right and rotates 360 degrees around the column.

How is the table height adjusted?
The table uses a rack-and-pinion mechanism for controlled height adjustment.

Does it include a work light?
Yes. A built-in LED work light is included to improve visibility around the workpiece.

What warranty is included?
The drill press is covered by a 3-year warranty.
