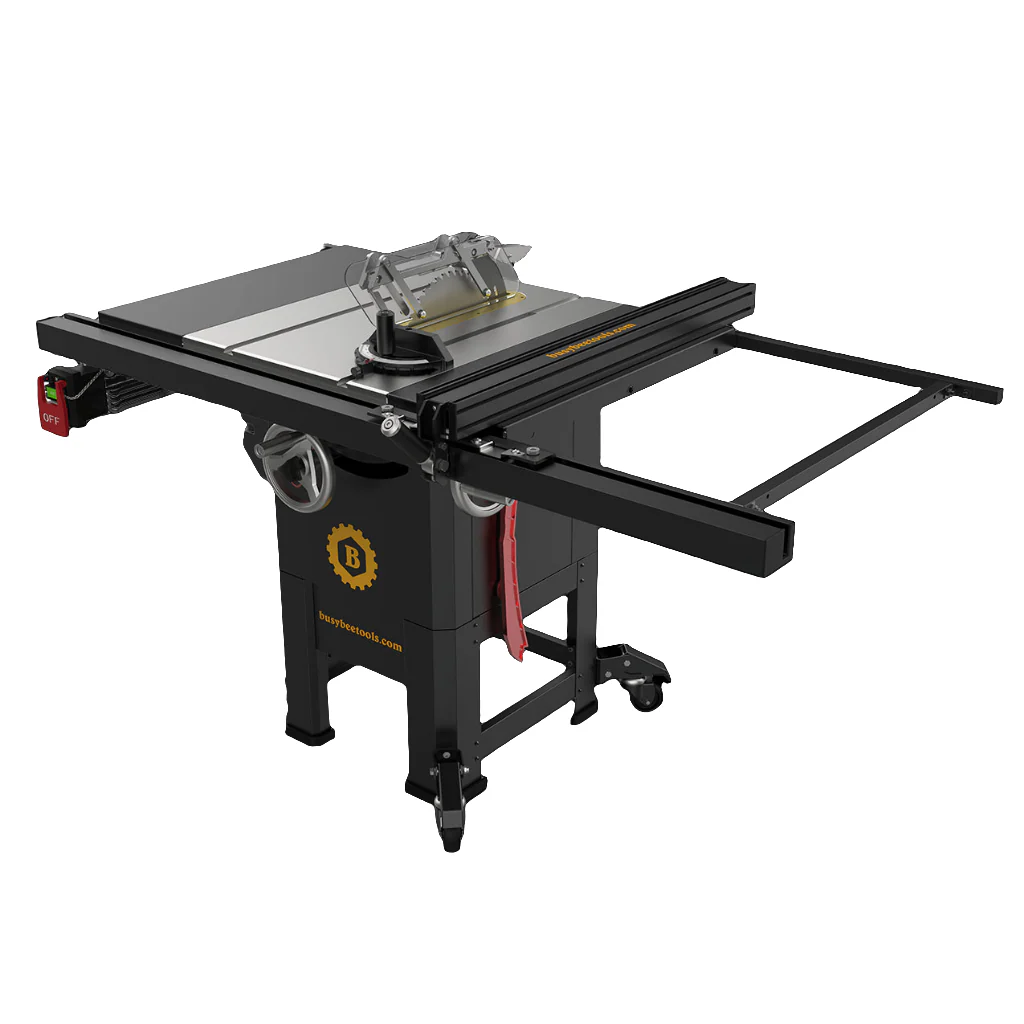

Designed to bridge the gap between contractor and cabinet saws, the BBTS10 delivers substantial cutting capacity in a more manageable hybrid design. Its 2 HP motor can be operated on either 120V or 240V, making it adaptable to a range of workshop electrical setups.

A precision-ground cast iron table and powder-coated stamped steel extension wings provide a smooth, stable work surface, while cabinet-mounted cast iron trunnions support accurate blade height and bevel adjustments. The included BBTSFN-PRO heavy-duty T-square cam-lock fence glides smoothly along its aluminum rail and locks securely for repeatable rip cuts.

For crosscutting and angled work, the BBTSMG-PRO miter gauge features a T-slot design with detents at 15-degree intervals. A built-in mobile base makes the saw easier to reposition, while the 4" downward-facing dust port helps direct chips and dust toward a compatible collection system.

Features

• 2 HP motor can be configured for 120V or 240V operation

• Hybrid design combines cabinet-saw stability with a more manageable footprint

• Precision-ground cast iron table supports smooth, accurate stock movement

• Powder-coated stamped steel extension wings expand the work surface

• Cabinet-mounted cast iron trunnions improve stability and adjustment control

• Maximum rip capacity of 30" to the right of the blade

• Maximum rip capacity of 15" to the left of the blade

• BBTSFN-PRO heavy-duty T-square cam-lock fence included

• Aluminum fence face and extruded aluminum rail system

• Smooth-gliding fence locks securely for repeatable cuts

• BBTSMG-PRO aluminum miter gauge included

• T-slot miter gauge has detents at 15-degree intervals

• Blade tilts left from 0 to 45 degrees

• Maximum cutting depth of 3-1/4" at 90 degrees

• Accepts dado sets up to 13/16" wide

• Built-in mobile base for easier movement around the workshop

• 4" downward-facing dust port

• Quick-release split blade guard assembly

• Sealed, permanently lubricated arbor bearings

• Includes a 10" 40-tooth saw blade

• 2-year warranty

Specifications

• Model: BBTS10

• Table Saw Type: Hybrid

• Motor: 2 HP

• Electrical Requirement: 120V or 240V, single-phase, 60 Hz

• Prewired Voltage: 120V

• Full-Load Current: 15A at 120V; 7.5A at 240V

• Minimum Circuit Size: 20A at 120V; 15A at 240V

• Connection Type: Cord and plug

• Power Cord: Included, 6 ft., 14 AWG

• Plug: Included

• Maximum Blade Diameter: 10"

• Arbor Size: 5/8"

• Arbor Speed: 3,450 RPM

• Maximum Dado Width: 13/16"

• Blade Tilt Direction: Left

• Blade Tilt Range: 0 to 45 degrees

• Maximum Cutting Depth at 90 Degrees: 3-1/4"

• Maximum Cutting Depth at 45 Degrees: 2-1/4"

• Maximum Rip Capacity Right of Blade: 30"

• Maximum Rip Capacity Left of Blade: 15"

• Floor-to-Table Height: 35-3/4"

• Table Width with Extension Wings: 40-1/4"

• Table Depth with Extension Wings: 27"

• Distance from Front of Table to Blade Centre: 15-1/2"

• Distance from Front of Table to Blade at Maximum Cut: 11-1/2"

• Main Table Thickness: 1-5/8"

• Dust Port Diameter: 4"

• Warranty: 2 years

Fence Specifications

• Fence Type: Cam-lock T-style with aluminum face

• Fence Length: 35-3/4"

• Fence Width: 3-1/8"

• Fence Height: 2-7/16"

• Fence Rail Type: Extruded aluminum

• Fence Rail Length: 64"

• Fence Rail Width: 3-1/8"

• Fence Rail Height: 2-1/4"

Construction

• Table: Cast iron

• Extension Wings: Stamped steel

• Cabinet: Pre-formed steel

• Trunnions: Cast iron

• Fence Assembly: Aluminum

• Fence Rails: Aluminum

• Miter Gauge: Aluminum

• Blade Guard: Aluminum and plastic

• Cabinet Finish: Powder coated

• Arbor Bearings: Sealed and permanently lubricated

Comes With

• BBTSMG-PRO Pro Miter Gauge

• BBTSFN-PRO Heavy-Duty T-Square Cam Lock SecureGrip Fence

• 10" 40-tooth saw blade

• Split blade guard assembly

• Push stick

• Dado insert

• Standard insert

• Built-in mobile base

• 6 ft. power cord and plug

FAQ

What type of table saw is the BBTS10?
The BBTS10 is a hybrid table saw that combines features commonly associated with contractor and cabinet saws.

Can the saw operate on both 120V and 240V?
Yes. The 2 HP motor can be configured for either 120V or 240V single-phase power. The saw is prewired for 120V.

What is the maximum rip capacity?
The included fence and rail system provides up to 30" of rip capacity to the right of the blade and 15" to the left.

What is the maximum cutting depth?
The saw can cut up to 3-1/4" deep at 90 degrees and 2-1/4" deep at 45 degrees.

Can this table saw use a dado blade set?
Yes. It accepts dado sets up to 13/16" wide, and a dado insert is included.

Which fence is included?
The saw includes the BBTSFN-PRO heavy-duty T-square cam-lock SecureGrip fence with an aluminum face and extruded aluminum rail.

Does it include a miter gauge?
Yes. The BBTSMG-PRO aluminum miter gauge is included and features T-slot construction with detents at 15-degree intervals.

Is the saw easy to move?
Yes. A built-in mobile base allows the saw to be repositioned within the workshop.

What size dust collection connection does it use?
The saw has a 4" downward-facing dust port for connection to a compatible dust collection system.

What warranty is included?
The BBTS10 is backed by a 2-year warranty.
